Milesight UG65 8-Channel Indoor LoRaWAN Gateway 4G

Long-range wireless connectivity offering seamless long-range connectivity over distances of up to 2 km in urban areas. UG65 supports receiving data from 8 end-devices simultaneously. And up to 2000 end devices overall.

Available with Ethernet/WiFi or Ethernet/WiFi/4G

The UG65 device excels at efficiently managing high volumes of traffic while consuming minimal power.

• Semtech SX1302
• Full-Duplex
• Support SF5 & SF6
• LoRaWAN Class A/B/C

Fast and powerful data processing:

• 512 MB DDR4 RAM
• NXP 64-bit Quad-Core Processor

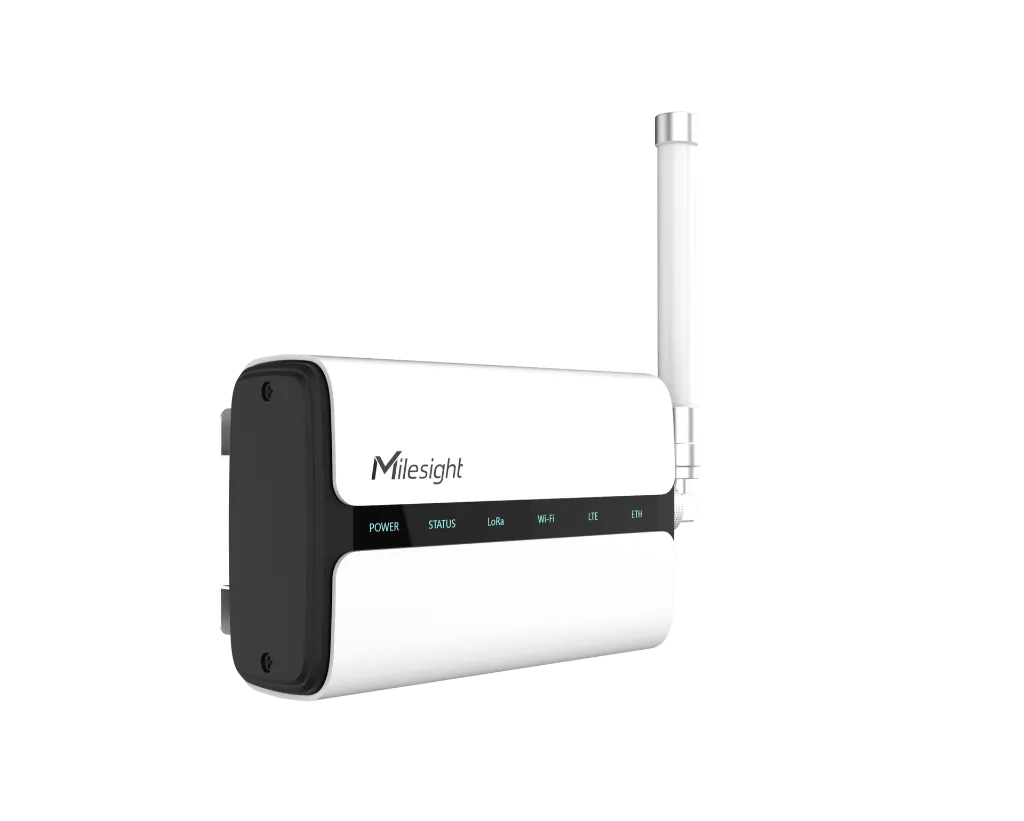

Integrated internal LoRa, Cellular, and Wi-Fi antennas. 1 external LoRa antenna (pictured) is optionally available to strengthen signal coverage.

BMS integration using BACnet

With support for BACnet/IP, real-time data can be seamlessly integrated into existing Building Management System (BMS).

BACnet over LoRaWAN

LoRaWAN serves as the data channel to the control applications

No changes to the BACnet protocol, network, or BACnet-enabled devices and management systems are needed

LoRaWAN as a Complementary Network

LoRaWAN network is independent of the core BACnet infrastructure

The LoRaWAN network feeds data to the BMS through a virtual BACnet server

LoRaWAN data and sensors appear to be part of the BACnet system

Contact us to find out about additional products and services from our partners at Go Monitor:

• Configuration support
• Managed gateways (on the Go Monitor LoRaWAN network)
• Full end-to-end solution with custom cloud dashboards
