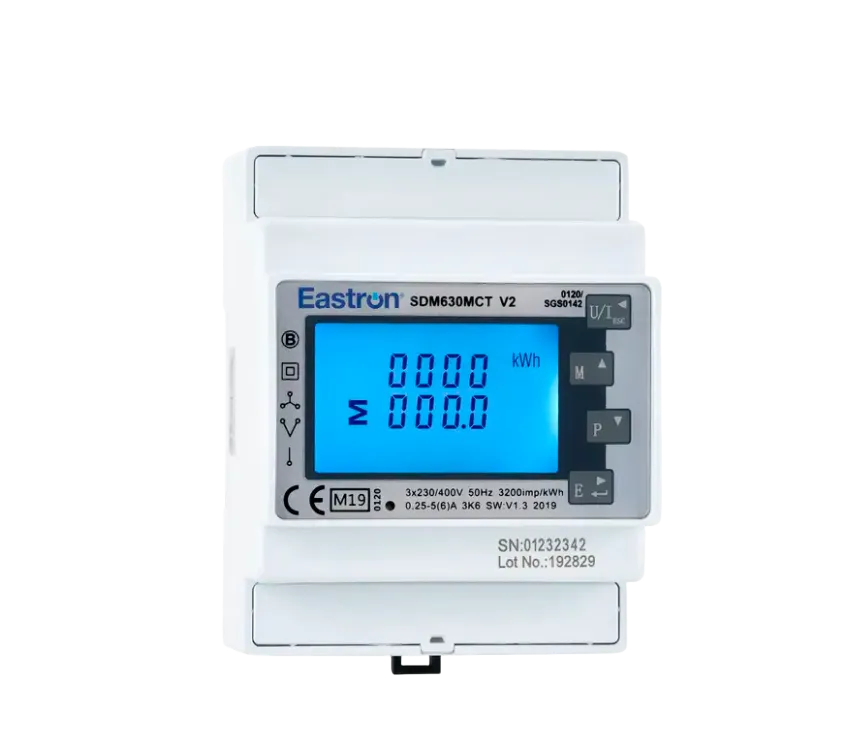

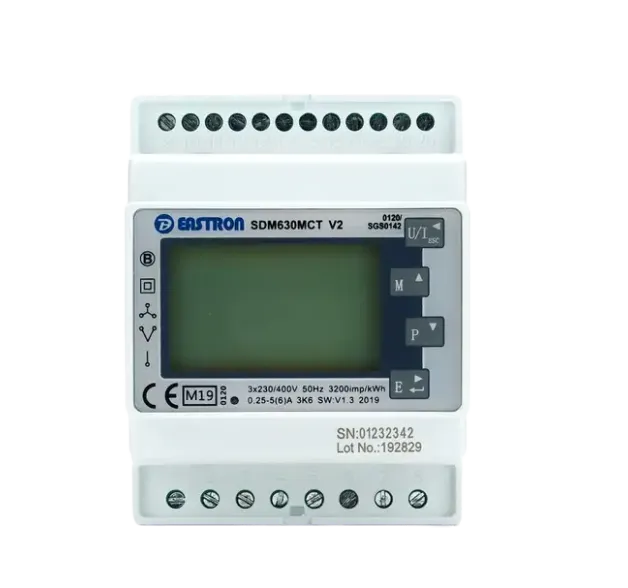

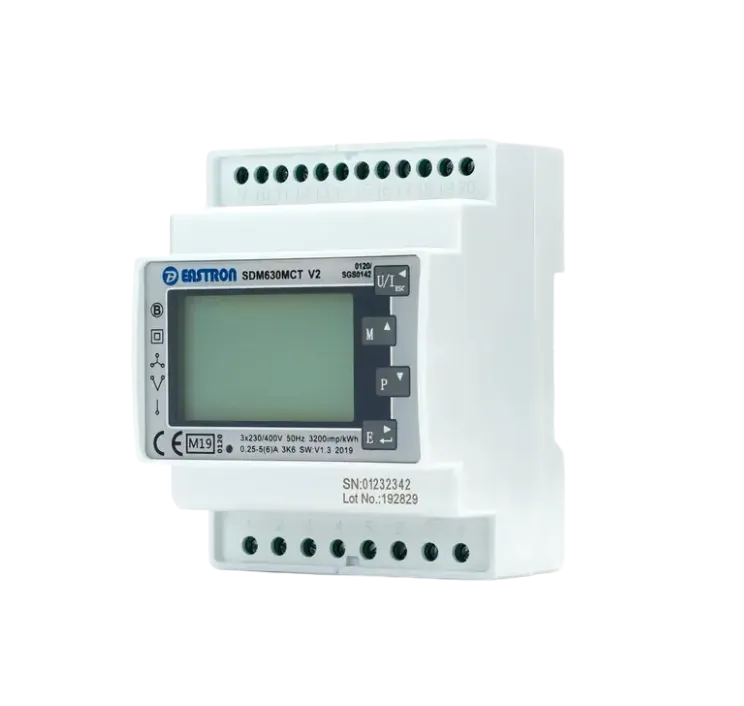

Eastron SDM630MCT Three Phase Energy Monitor
Advanced multi-function three-phase energy monitor
The SDM630MCT is an advanced multi-function three-phase energy monitoring solution. The meter is 1A or 5A CT connected device. The device measures negative power readings, which can also indicate a reversal of CT installation or connection. With built-in pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.
Features:
- MID Certified
- UL Listed
- Class 0.5 accuracy
- Single phase or three phase network compatible
- Four module DIN rail mounted
- Integrated backlit display
- Simple menu navigation
- Built in Modbus RS485 and Pulsed outputs
- An alternative Mbus interface is also available
- An alternative mV CT connected version is also available
Display Parameters:
- Phase to Neutral Voltage (V)
- Phase Current (A)
- Voltage Total Harmonic Distortion (U%THD)
- Current Total Harmonic Distortion (I%THD)
- Frequency (Hz)
- Power Factor (PF)
- Current Max Demand (MD A)
- Power Max Demand (MD kW)
- Active Power (kW)
- Reactive Power (kVAr)
- Apparent Power (kVA)
- Import Active Energy (kWh)
- Export Active Energy (kWh)
- Total Active Energy (kWh)
- Import Reactive Energy (kVArh)
- Export Reactive Energy (kVArh)
- Total Reactive Energy (kVArh)
Certification and Standards:
- MID: EN50470-1 & EN50470-3 Class B
- EMC: EN61326-1 & EN61326-2-3
- LVD: EN61010-1 & EN61010-2-3
- UL Listed
- IEC/EN62052-11:2003 Class 0.5s
