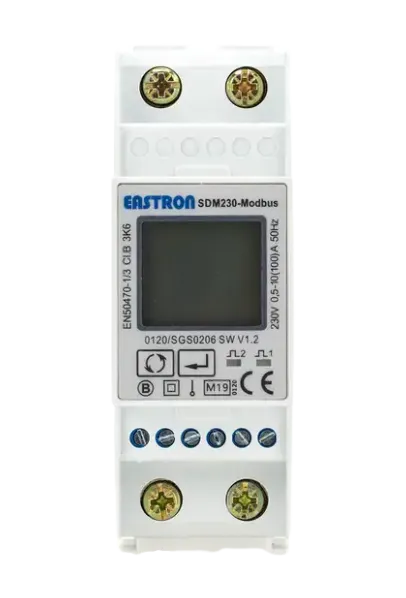

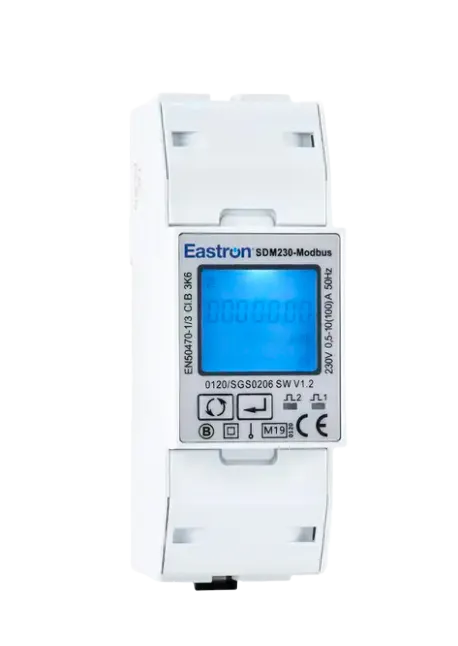

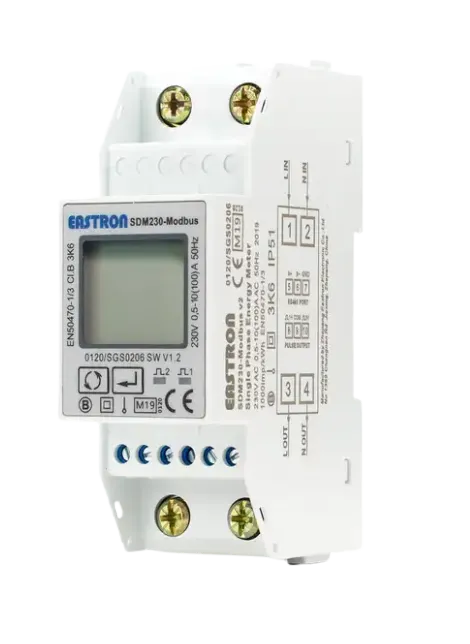

Eastron SDM230-MODBUS-MID V2 Single Phase Energy Meter

SDM230 Modbus is an advanced digital single-phase multi-function energy meter, which measures up to a 100A direct load. The SDM230 Modbus has 15 measured parameters and four kWh measurement modes which have been designed around the development of regeneration, such as solar and battery storage.

The meter supports RS485 Modbus RTU or an alternative Mbus version is available. Communication parameters are password protected in the setup mode.

Features:

• MID Certified (B and D)
• 100A single phase input
• Two module DIN rail mounted
• Integrated backlit display
• Simple menu navigation
• Built in Modbus and pulsed outputs or optional alternative Mbus interface
• Four kWh measurement modes for PV and battery storage

Display Parameters:

• Phase to Neutral Voltage (V)
• Phase Current (A)
• Frequency (Hz)
• Power Factor ( PF)
• Power max demand (MD kW)
• Active power (kW)
• Reactive power (kVAr)
• Apparent power (kVA)
• Import active power (kWh)
• Export active power (kWh)
• Total active power (kWh)
• Import reactive power (kVAh)
• Export reactive power (kVAh)
• Total reactive power (kVAh)
• Hours Run

Certification and Standards:

• MID: EN50470-1 & EN50470-3 Class B
• EMC: EN61326-1 & EN61326-2-3
• LVD: EN61010-1 & EN61010-2-3
