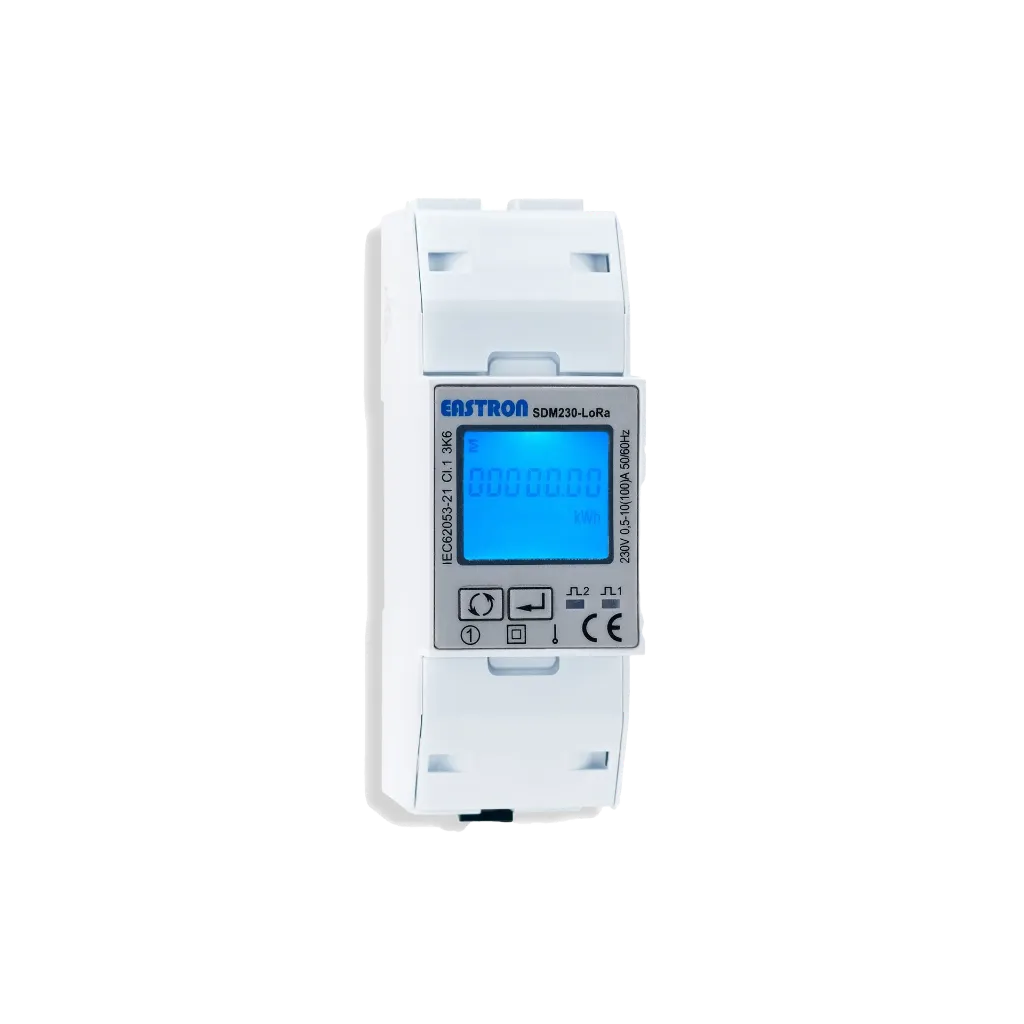

Eastron SDM230 LoRaWAN MID Single Phase Energy Meter
Advanced MID-approved multifunction single-phase energy monitor
The Eastron SDM230 LoRaWAN is an advanced MID-approved multifunction single-phase energy monitoring solution. This easy to install device can be DIN rail mounted for a fast set up.
This smart device measures and displays the output of single-phase two-wire (1p2w) supplies, and has a built-in LoRaWAN module.
Providing bi-directional measurements for kW and kWh, this meter can also measure parameters such as kVArh, PF, Frequency, Voltage, Current, THD, etc.
Features:
- Built-in LoRaWAN communication
- MID certified (B and D)
- Integrated backlit display
- High accuracy, Class 1 / Class 0.5s
- Configurable pulsed output
- Confirmation/Offline detection available
- Supports auto-upload mode for actively uploading data to back server
- Supports auto-resume mode for sudden loss of power
- Configurable download/upload times
- DIN rail mountable
Displayed Parameters:
- Phase to Neutral Voltage (V)
- Phase Current (A)
- Frequency (Hz)
- Power Factor (PF)
- Power max demand (MD kW)
- Active power (kW)
- Reactive power (kVAr)
- Apparent power (kVA)
- Import active power (kWh)
- Export active power (kWh)
- Total active power (kWh)
- Import reactive power (kVAh)
- Export reactive power (kVAh)
- Total reactive power (kVAh)
- Hours Run
Certification and Standards:
MID: EN50470-1 & EN50470-3 Class B
EMC: EN61326-1 & EN61326-2-3
LVD: EN61010-1 & EN61010-2-3
Contact us to find out about additional products and services from our partners at Go Monitor:
- Configuration support
- Managed gateways (on the Go Monitor LoRaWAN network)
- Full end-to-end solution with custom cloud dashboards
