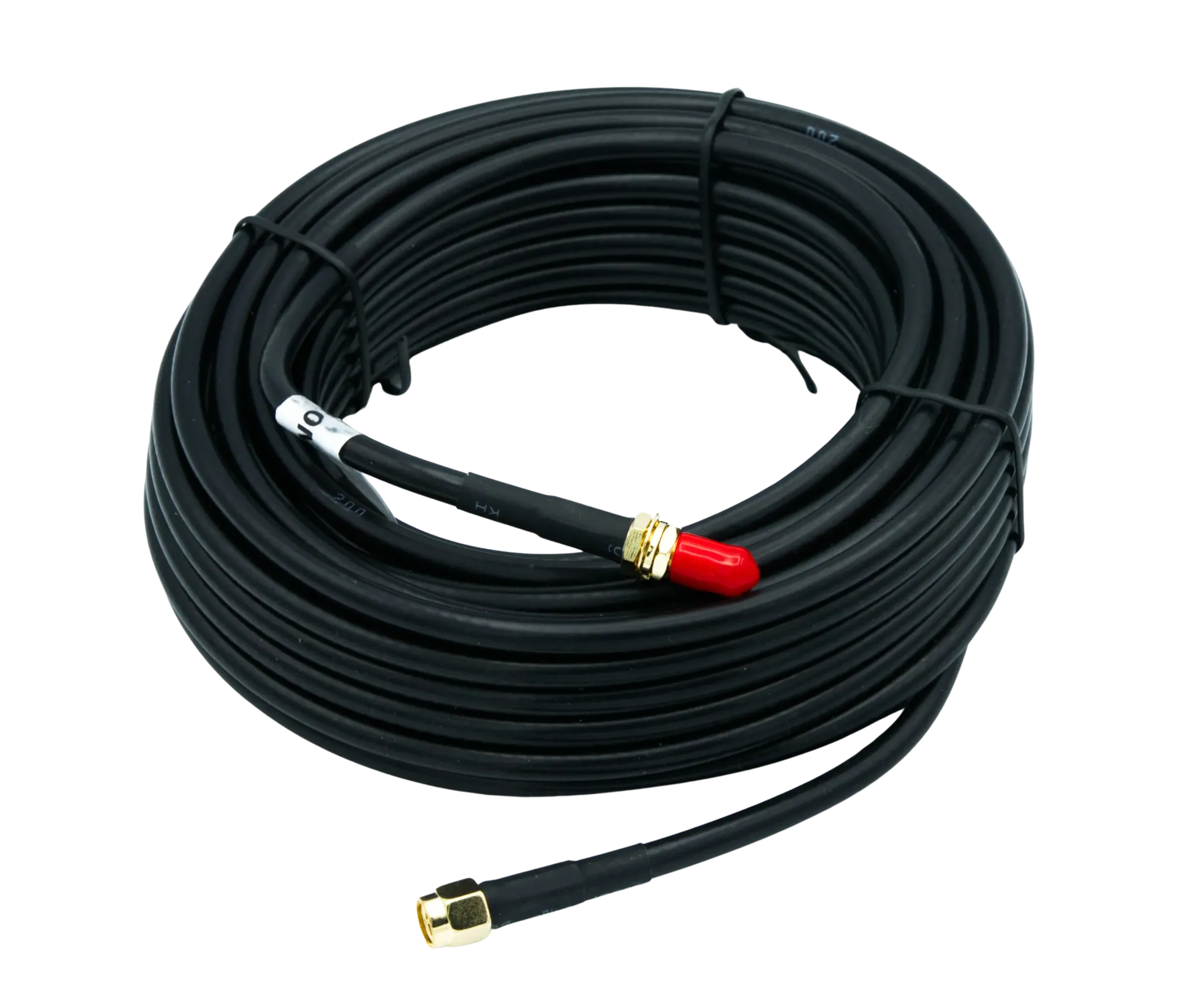

Antenna Extension Cable SMA M to F

Low loss 50 Ohm SMA Male to Female RF coaxial cable

Available in 2, 5, 10 or 15 meter length

Frequency range(MHz): 0-6GHZ

Connectors: SMA Male/Female

Nominal impedance: 50Ω

Nominal velocity of propagation: 83%

Capacitance (pF/m): 80.4

Material: Copper

Inner conductor O.D (mm): 1.12 bare copper solid

Dielectric O.D (mm): 2.95 closed-cell PE

Outer conductor O.D (mm): 3.66 sealed AI./Mylar AI.+ tinned copper braid (85%)

Standard jacket (mm): 4.95 black PVC

Weight (kg/m): 0.037

Cable: CFD 200

Operating temperature: -20℃~70℃
