Is the Milesight UG65 Right for Your Building?
A Technical Guide
You're evaluating IoT solutions for your facility. You've heard about LoRaWAN, seen the Milesight UG65 mentioned in vendor materials, and now you're wondering, is this the right gateway for our building? The answer isn't one-size-fits-all, but with some clear thinking about your infrastructure, scale, and connectivity needs, you can make a confident decision.
Let's break down what the UG65 actually is, what it can do, and crucially, what kinds of buildings and deployments it's genuinely suited for.

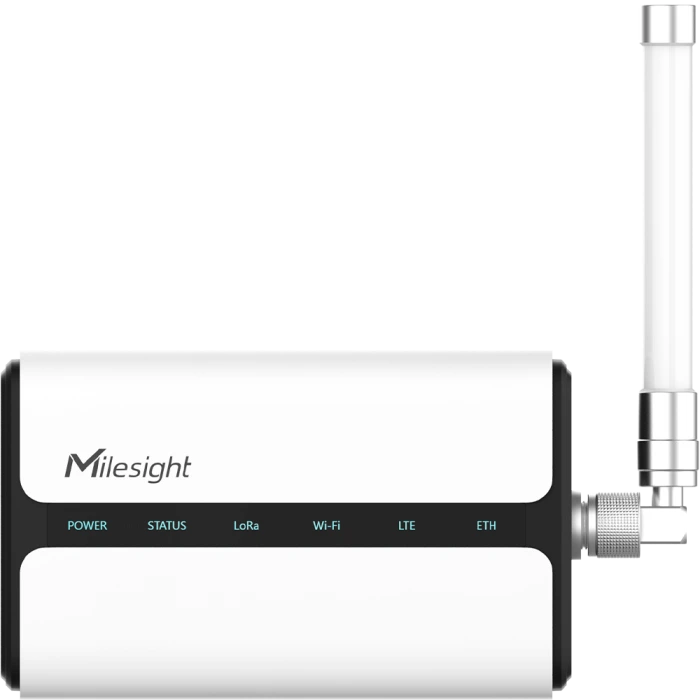

What Is the Milesight UG65?
The UG65 is an industrial-grade LoRaWAN gateway. It's basically a bridge that sits between your IoT sensors and your monitoring platform. Think of it as a translator.
Your building's low-power wireless sensors (temperature, humidity, occupancy, energy meters, door sensors, and so on) speak LoRaWAN, which is just a long-range, low-power radio language. The UG65 listens to hundreds or thousands of these devices all at once, then forwards their data to your network server over regular internet connectivity. (Usually 4G or Ethernet to your existing network).
Your building's low-power wireless sensors (temperature, humidity, occupancy, energy meters, door sensors, and so on) speak LoRaWAN, which is just a long-range, low-power radio language. The UG65 listens to hundreds or thousands of these devices all at once, then forwards their data to your network server over regular internet connectivity. (Usually 4G or Ethernet to your existing network).
What makes the UG65 stand out is that it can handle dense deployments. It's powered by the Semtech SX1302 LoRa chip and a quad-core processor, and it supports connectivity for over 2000 end nodes. That's way more capable than entry-level gateways. For facilities with extensive sensor networks, this capacity actually matters.
Range and Coverage
The UG65 gives you up to 15 km line-of-sight range and around 1 km coverage in urban environments. Sounds great until you think about real buildings. That 15 km number assumes ideal conditions, usually a rooftop in open terrain. In most real buildings, especially multi-story facilities or anything surrounded by obstacles, you're looking at 500 meters to 2 km of effective range. This is important when you're planning where to put sensors.
For a warehouse, office campus, or large manufacturing facility, one well-placed UG65 might cover your whole site. If you're in a dense urban environment with multiple buildings spread across several blocks, you're probably looking at multiple gateways or a really carefully planned antenna setup.
Our sales team can help plan this out with you, including providing site surveys with signal testing equipment to prove gateway placement before deployment.
Our sales team can help plan this out with you, including providing site surveys with signal testing equipment to prove gateway placement before deployment.
Processing Power and Capacity
The gateway has a quad-core 1.5 GHz ARM Cortex-A53 processor with 512 MB of RAM and 8 GB of storage.
The 8-channel architecture means it can receive data from 8 concurrent sensor transmissions and handle over 2000 registered devices. In high-density deployments where lots of sensors are sending frequent updates, this processor headroom keeps data flowing smoothly without bottlenecks.
Power and Network Connectivity
You can power the UG65 with a DC jack connector for 9-24 VDC or with 802.3af PoE input. PoE is actually a big deal because it means you can power the gateway and provide internet through a single Ethernet cable. That simplifies installation in existing buildings quite a bit.
For getting the data to the internet, the UG65 gives you options. You get Ethernet, cellular, and Wi-Fi all available for backhaul. This redundancy is important in production deployments. If your Ethernet goes down, cellular or Wi-Fi takes over automatically.
Environmental Durability
The UG65 is IP65 rated, which means it's dustproof and water-resistant. It works from -40°C to +70°C and handles storage temperatures from -40°C to +85°C. That means you can mount it in basements, server rooms, semi-outdoor locations, freezing warehouses, or hot data centers.
Who Should Actually Buy This Gateway?
Manufacturing and Logistics
If you're monitoring equipment vibration, temperature in storage areas, or tracking assets across a warehouse or factory floor, the UG65's 2000-device capacity and robust specs make sense. One gateway can often cover an entire facility, and because it has an embedded network server, you can deploy it independently of cloud infrastructure if you want to.
Smart Buildings and Campuses
Office parks, universities, and large commercial real estate setups benefit from the UG65's ability to monitor HVAC, lighting, occupancy, and energy consumption across multiple buildings. You can send a single command to multiple LoRaWAN devices at once, which is really efficient for things like adjusting HVAC across an entire building.
Data Centres
Monitoring power consumption, temperature, and humidity in data centres requires dense sensor networks. The UG65's processing power handles this traffic without problems, and PoE installation makes deployment in highly structured environments way easier.
Retail and Hospitality
For multi-location operators, the UG65's centralized management capabilities reduce operational headaches. Monitor temperature in cold-chain storage, occupancy patterns, or HVAC efficiency across dozens of locations from one place.
When the UG65 Might Be Overkill
If you're just monitoring a small office building with 50 devices reporting once per hour, a simpler, cheaper gateway would do the job fine. If you have strict requirements to use a specific network server (some organizations require AWS LoRaWAN or other specific platforms), you need to verify compatibility before you commit.
Same thing if your building's geography makes it impossible to reach sensors. Deep underground spaces or areas with lots of metal don't play well with any wireless gateway. You'll need additional gateways regardless of which model you choose.
Integration with Your Monitoring Platform
The UG65 connects to external platforms like Go Monitor through standard APIs. Data flows using MQTTS or HTTP, which makes it straightforward to connect the gateway with IoT platforms or enterprise applications.
What this means is your LoRaWAN sensors send data through the UG65, into your network server, and then into your analytics and monitoring dashboard. The gateway is just the bridge, not the destination.
The gateway can also analyse radio noise levels in your environment and show them visually. This is actually useful during deployment because it takes the guesswork out of where to mount the antenna and helps ensure reliable coverage when you're building large sensor networks.
Network Server Options
The UG65 doesn't lock you into Milesight's ecosystem. It supports integration with The Go Monitor Cloud LoRaWAN Network Server, Loriot, The Things Stack, ChirpStack, and other well-known LoRaWAN network servers. It also has a built-in network server for simpler deployments.
You can use the built-in network server for self-contained setups, connect to a cloud network server if you want managed infrastructure, integrate with ChirpStack for on-premises control, or connect to enterprise platforms like AWS LoRaWAN. This flexibility means you're not trapped if you decide you want to change providers later.
The Decision Framework
Before you commit, ask yourself a few things.
How many sensors are you actually planning to deploy?
If it's fewer than 200, the UG65 is probably over-specified. If you're looking at 500 or more, its capacity becomes genuinely valuable.
If it's fewer than 200, the UG65 is probably over-specified. If you're looking at 500 or more, its capacity becomes genuinely valuable.
How spread out is your facility?
A 2-km radius covers a warehouse or office building. A campus or multi-location operation probably needs multiple gateways.
A 2-km radius covers a warehouse or office building. A campus or multi-location operation probably needs multiple gateways.
What's your internet reliability situation?
If you have redundant connectivity like Ethernet plus cellular, the UG65's failover capabilities matter. If you've got just one connection, that becomes your bottleneck, not the gateway.
If you have redundant connectivity like Ethernet plus cellular, the UG65's failover capabilities matter. If you've got just one connection, that becomes your bottleneck, not the gateway.
Do you need edge computing?
The embedded Python SDK, node-red capability, and quad-core processor let you do local processing, data filtering, and conditional logic at the gateway level. If that's important to you, the processing power justifies the investment.
The embedded Python SDK, node-red capability, and quad-core processor let you do local processing, data filtering, and conditional logic at the gateway level. If that's important to you, the processing power justifies the investment.
What's your timeline and budget?
The UG65 costs a little more upfront than the most basic gateways, but its capacity and features reduce per-device costs in large deployments. It's reliability and ease of use to work with are also major factors in choosing this gateway even for small deployments.
The UG65 costs a little more upfront than the most basic gateways, but its capacity and features reduce per-device costs in large deployments. It's reliability and ease of use to work with are also major factors in choosing this gateway even for small deployments.
The Bottom Line
The Milesight UG65 is a solid, capable gateway built for facilities with serious IoT ambitions. It delivers industrial-grade reliability, real scalability to 2000+ devices, and flexible connectivity that matters for production deployments.
If you're building serious, long-term IoT infrastructure across multiple floors, multiple buildings, or multiple sites, the UG65's robust design make it a great fit.
The real question isn't whether the UG65 is good. It is. The question is whether you actually need what it offers. Size your gateway to your deployment, or your realistic near-term plans, not your optimistic hopes. The UG65 is ready to scale with you as you grow.
